Accessories
Control Panel
1
1-Standards NFPA 20 Compatible with other international standards
2-Display Graphics Transflective (visible with sunlight)
3-Configurable Functions Inputs Outputs
4-Comunicaciones USB ETHERNET RS 485
5-Applications Download data to Pen drive SVE Free Software Boot loader
6-Data logs500 Events 16.000 Pressures 50 Pump tests
7-Electric mains analyzer True RMS V I kW Cos φ
8-Demand detectors Pressure transducer Pressure switch with open or short circuit monitoring
2
• Standards: NFPA 20 / EN 12845 / AS 2941 / LPC TB210 / FOC / UNE 23500:18 / UNI 10779

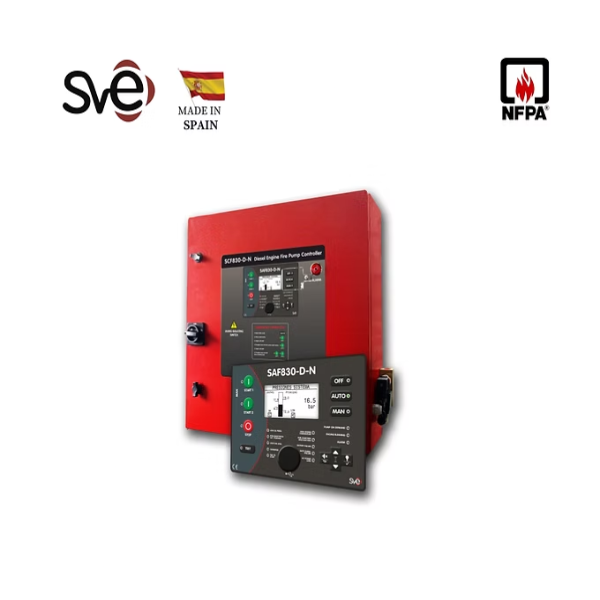

• Control for diesel engine and electric motor driven fire pumps.
• Control panels, Electronic controllers, Battery chargers, other components; Certified, approved & listed.
• Communications: USB (PC, Pen drive), RS 485, ETHERNET,
• SVE Software: System monitoring local & remote, Configuration, 500 Events log, 16.000 Pressure registers log, 50 Pump test log
3
• Jockey Control Panel
• Configurable functions. Graphic display: 3 phase voltage. Current 1 phase. Sequence of phases. Active power. Cos phi. Number of starts. Hours and minutes of operation. Pressures log. Events log. Data download to pendrive. USB / ETHERNET / RS485 Communications
4
• Electric Control Panel
• Configurable functions. Graphic display: 3 phase voltage. Current 1 phase. Sequence of phases. Active power. Cos phi. Number of starts. Hours and minutes of operation. Pressures log. Events log. Data download to pendrive. USB / ETHERNET / RS485 Communications

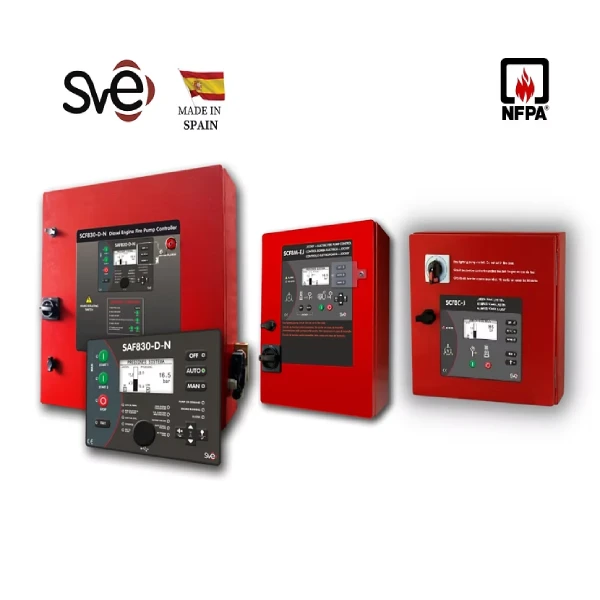

SVE Control Panel
Planet X is the Sole Agent for SVE Controllers made in Spain. SVE was established in 1982. Since its creation SVE has offered innovation, knowledge and guaranteed products and services to the international market. SVE designs separated controllers according to NFPA 20 for:
• Electric motor driven fire pump control panel.
• Diesel motor driven fire pump control panel.
• Jockey fire pump control panel.
Flow Meter

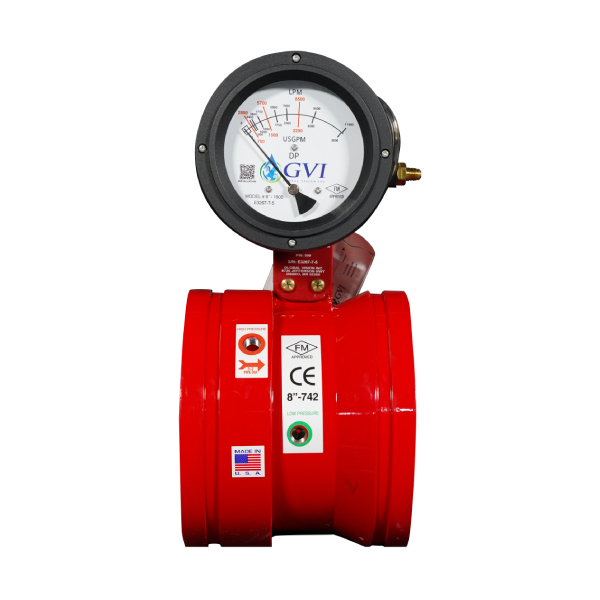

GVI FLOW METER_600

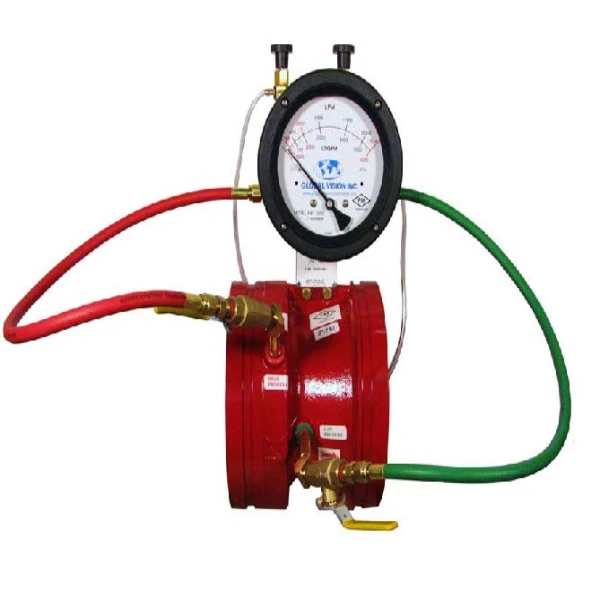

Planet X is the distributor for GVI Flow Meters FM Approved made in USA. GVI is the manufacturer of the most accurate flow meter ever, with continuous improvements and cutting edge technology making it the most requested and most specified fire meter in the world.
The GVI Gauge is used in more fire training centers worldwide than all flow test meter competitors combined
