Pumps Manufacturer
Fire Pumps
CEPREVEN UNE STANDARD FIRE PUMPS
Flow Range : 400 to 3000 USgpm
Head Range : 61 to 335 PSI
Rating (HP): Up to 450 HP
Rated Speed: 1450/2900 rpm

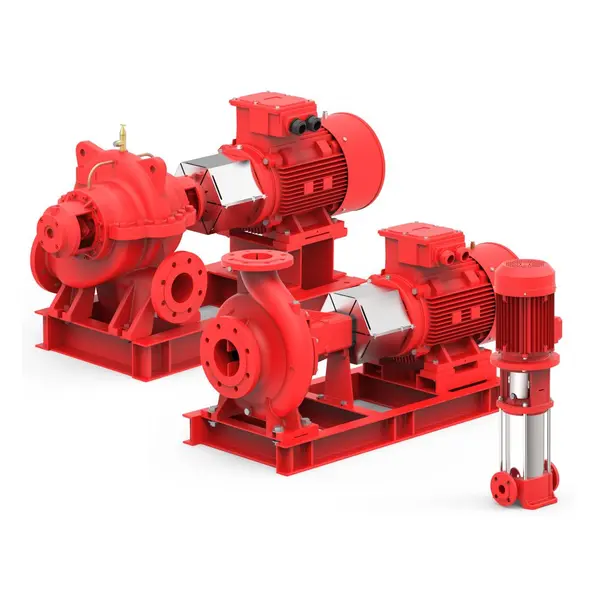

UL LISTED FM APPROVED FIRE PUMPS
Flow Range:400 to 3000 USgpm
Head Range: 61 to 335 PSI
Rating (HP): Up to 450 HP
Rated Speed :
50 Hz. 14502900 rpm
60 Hz. 17703550 rpm
Vertical Turbine Pumps
Flow range :
50 Hz. : up to 1000 m³/h
60 Hz. : up to 4402 usgpm
Head range :
50 Hz. : up to 600 Meters
60 Hz. : up to 1968 feet
Rated speed :
50 Hz. : 1500 rpm
60 Hz. : 1800 rpm
HVAC Sensorless Systems
Close-Coupled Vertical In-Line Pumps (GVIGVS Series)
The GVI & GVS series are vertical, single-stage, centrifugal, close-coupled & split-coupled vertical inline pumps.
Flow range
50 Hz. up to 1200 m³h
60 Hz. up to 6790 usgpm
Head range
50 Hz. up to 130 mtrs
60 Hz. up to 455 feet
Rating
50 Hz. up to 160 kW
60 Hz. up to 185 kW
Rated speed
50 Hz. 96014502900 rpm
60 Hz. 115017503450 rpm

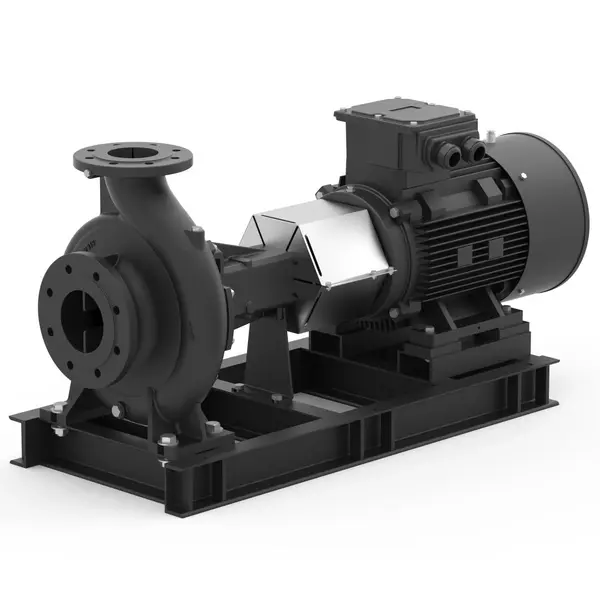

End Suction Long Coupled Pumps (GBS Series)
GBS are single-stage bare shaft end-suction pumps according to ISO 2858.
Flow range :
50 Hz. : up to 1680 m³/h
60 Hz. : up to 3350 usgpm
Head range :
50 Hz. : up to 152 mtrs
60 Hz. : up to 470 feet
Rating :
50 Hz. : 0.37 – 350 kW
60 Hz. : 0.37 – 150 kW
Rated speed :
50 Hz. : 960/1450/2900 rpm
60 Hz. : 1150/1750/3450 rpm

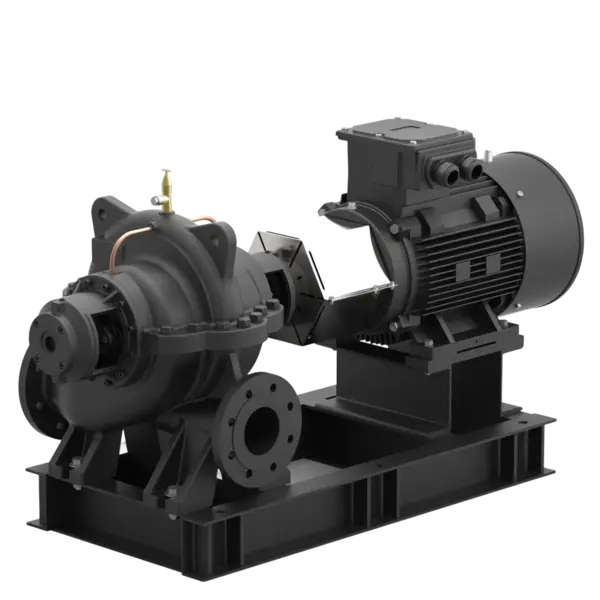

Horizontal Split Case Pumps (GHC Series)
GHC are horizontal split case pumps. The pumps have horizontal pump shaft and the volute casing can be dismantled in the horizontal plane along the drive shaft.
Flow range :
50 Hz. : 20 to 2700 m³/h
60 Hz. : Up to 7000 usgpm
Head range :
50 Hz. : 4 to 135 mtrs
60 Hz. : Up to 580 Feet
Rating :
50 Hz. : 3.0 – 315.0 kW
60 Hz. : Up to 150KW
Rated speed :
50 Hz. : 960, 1450 & 2900 rpm
60 Hz. : 1150/1750/3450 rpm
Multistage Centrifugal Pumps
Vertical Multistage Centrifugal Pumps (GCRGCRIGCRN Series)
Flow range :
50 Hz. : up to 180 m³/h
60 Hz. : up to 790 usgpm
Head range :
50 Hz. : up to 28 bar
60 Hz. : up to 995 feet
Rating :
50 Hz. : 0.37 to 75 kW
60 Hz. : 1/3-2 to 100 HP
Rated speed :
50 Hz. : 2900 rpm
60 Hz. : 3450 rpm
