Valves Manufacturer
Gate Valve
OS & Y Valve
– Working pressure: 200PSI / 250PSI / 300PSI
– Connection Ends: FF – FG – GG
– Size: 2-24 inch
NRS Valve
• Working pressure 200PSI 250PSI 300PSI
• Connection Ends FF – FG – GG – GF
• Size 2-24 inch
Check Valve
Check Valve

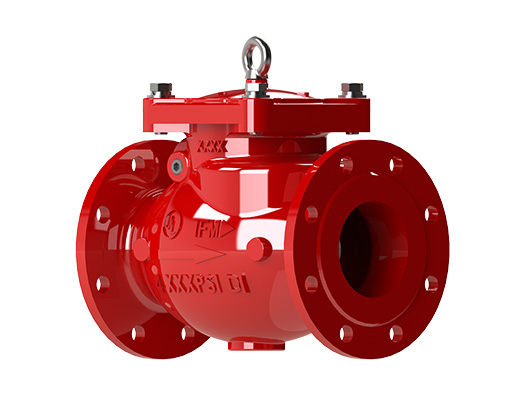

Product Name: Flanged Swing Check Valve
Product Figure No.: Fig.55FF
Product Size: DN50-DN300
Product Pressure: 200PSI/250/PSI/300PSI
Product Standard: AWWA C508

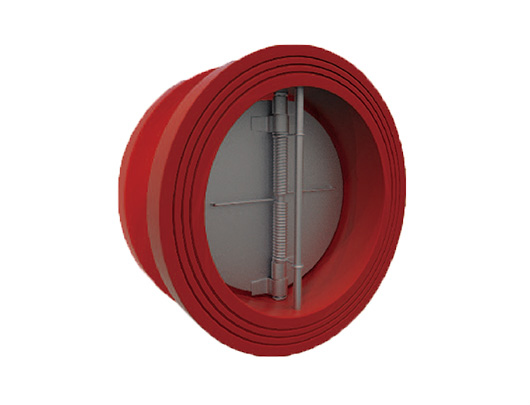

Wafer Dual Plate Check Valve
Product name: FM UL Wafer Dual Plate Check Valve
Product Figure No: Fig.50W
Product size: DN50-DN300
Product pressure: 175PSI/200PSI/250PSI/300PSI
Product Standard: API 594
Flange standard: ANSI B16.1 CLASS125/150

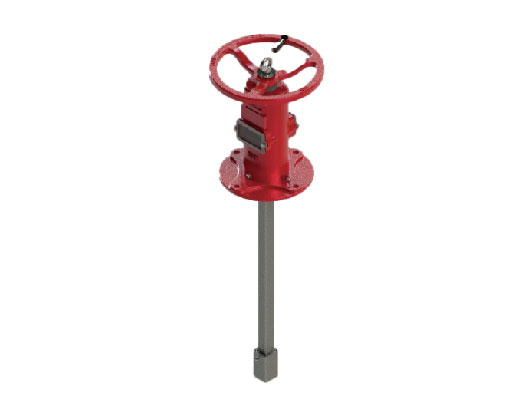

Indicator Post
Underground Type
Product Name: FM UL Indicator Post – Underground Type
Product Size: DN50~DN300
Product Standard: AWWA C550
Wall Type
Product Name: FM UL Indicator Post – Wall Type
Product Size: DN50~DN300
Product Standard: AWWA C550
Hydrant
Dry Barrel Fire Hydrant
Dry Barrel Fire Hydrant
• Working pressure: 250PSI
• Hose Nozzle: 2-1/2″-Two
• Pump Nozzle: 4″ or 4-1/2″ – One
• Flange End: Size 6″ ANSI Class125/ BS EN1092-2 PN16

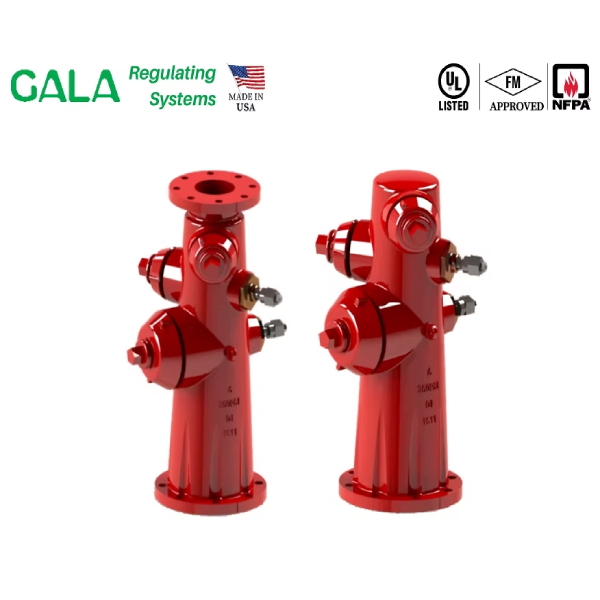

Wet Barrel Fire Hydrant
Wet Barrel Fire Hydrant
• Working pressure: 250PSI
• Monitor Flange: 4″
• Pipe Flange: 6″
Air Vent
Air Vent
Air release Valves
• Working pressure: 200PSI
• Connection Ends: NPT/BSPT/BSPP
Supervisory Switch

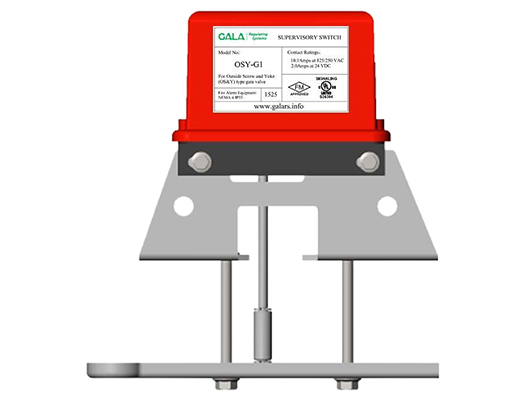

Supervisory Switch for OS&Y Gate Valve
Supervisory Switch for OS&Y Gate Valve
One SPDT contact model.
Contact Rating: 10Amps (125/250 VAC) / 2Amps (24 VDC) .
Enclosure Rating: NEMA 4- suitable for indoor / outdoor.
Conduit opening of ½”.
Special tamper screws to prevent disassembly.
Working Temperature: 0°C ~ 60°C.
Adjustable length trip rod.
3 position switch monitors vandal and valve closed signals.
Cover Material: ABS Plastic (Aluminium cover available upon request).
Service use on NFPA-13, NFPA-13D, NFPA-13R & NFPA-72.

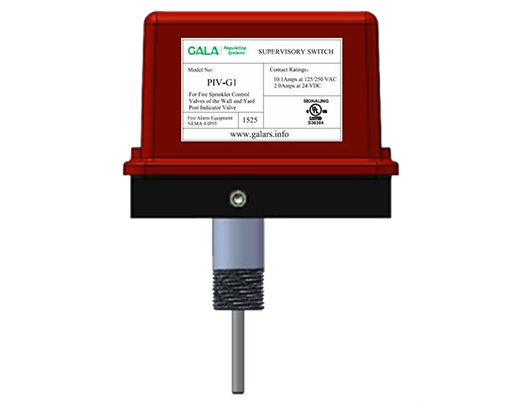

Supervisory Switch for Post Indicator Valve
Supervisory Switch for Post Indicator Valve
Conforms to UL346.
Fine adjustment feature for fast & easy installation.
One SPDT contact model (Form C).
Contact Rating: 10.1Amps (125/250 VAC) / 2Amps (24 VDC).
Enclosure Rating: NEMA 4- suitable for indoor / outdoor.
Conduit opening of ½”.
Special tamper screws to prevent disassembly.
Working Temperature: 0°C ~ 60°C.
Cover Material: ABS Plastic (Aluminium cover available upon request).
Tamper Switch
Tamper Switch
One SPDT contact model
Contact Rating: 10Amps (125/250 VAC) / 2Amps (24 VDC
Enclosure Rating: NEMA 4- suitable for indoor / outdoor
Conduit opening of ½”
Special tamper screws to prevent disassembly
Working Temperature: 0°C ~ 60°C
Adjustable length trip rod
3 position switch monitors vandal and valve closed signals
Cover Material: ABS Plastic (Aluminium cover available upon request)
Service use on NFPA-13, NFPA-13D, NFPA-13R & NFPA-72
Flow Switch
Flow Switch
Two conduit opening of ½”. One open; one knock-out type.
Sensitivity Range : 4 … 10 usgpm
Contact Rating: Two sets of SPDT (Form C)10Amps (125 / 250 VAC)
/2Amps (24 VDC)
Enclosure Rating: NEMA 4- suitable for indoor / outdoor
Compatible Pipe: 2” to 8”
Special tamper screws to prevent disassembly.
Maximum Surge : 5.5m/S
Time delay adjustment via rotating dial.
Two sets Micro-switch. 100% synchronization.
Working pressure : Max. 31bar / 450psi
Working temperature: 4.5°C … 49°C
Brass
Brass Accessories
Adaptor
Two conduit opening of ½”. One open; one knock-out type.
Sensitivity Range : 4 … 10 usgpm
Contact Rating: Two sets of SPDT (Form C)10Amps (125 / 250 VAC)
/2Amps (24 VDC)
Enclosure Rating: NEMA 4- suitable for indoor / outdoor
Compatible Pipe: 2” to 8”
Special tamper screws to prevent disassembly.
Maximum Surge : 5.5m/S
Time delay adjustment via rotating dial.
Two sets Micro-switch. 100% synchronization.
Working pressure : Max. 31bar / 450psi
Working temperature: 4.5°C … 49°C
Brass
Brass Valves

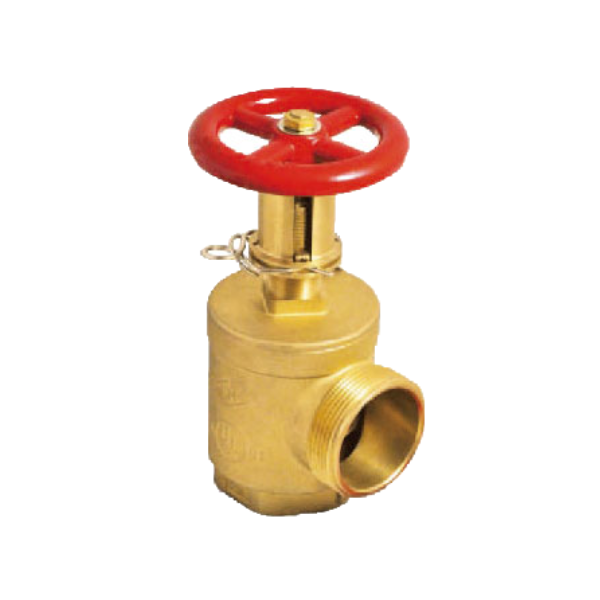

Angle Hose Valve
Product Size：DN40×DN40 / DN65×DN65 （NPT）
Product Pressure: FM175/300PSI UL175 PSI

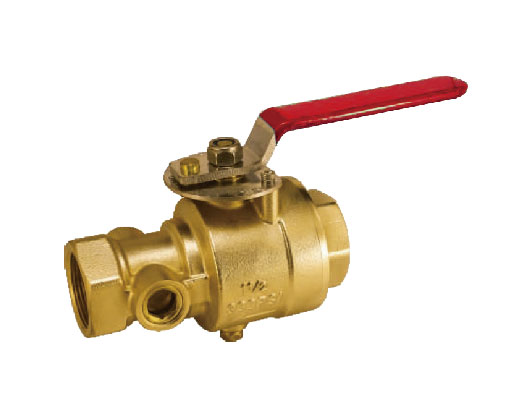

Test & Drain
Brass Valve Test and Drain
Product Size:DN25-DN50
Product Pressure: 300PSI
Products Features:
